What
are the core security features that WCF addresses?
There are four core security features that WCF
addresses:-Confidentiality: This feature ensures that the information does not go in wrong hands when it travels from the sender to the receiver.
Integrity: This feature ensures that the receiver of the message gets the same information that the sender sends without any data tampering.
Authentication: This feature verifies who the sender is and who the receiver is.
Authorization: This feature verifies whether the user is authorized to perform the action they are requesting from the application.
What
is transport level and message level security?
When we talk about WCF security there are two
aspects, the first is the data and the second is the medium on which the data
travels i.e. the protocol. WCF has the ability to apply security at the
transport level (i.e. protocol level) and also at message level (i.e. data).
Figure: - Transport and Message
level security
Transport level security happens at
the channel level. Transport level security is the easiest to implement as it
happens at the communication level. WCF uses transport protocols like TCP,
HTTP, MSMQ etc and every of these protocols have their own security mechanisms.
One of the common implementation of transport level security is HTTPS. HTTPS is
implemented over HTTP protocols with SSL providing the security mechanism. No
coding change is required it’s more of using the existing security mechanism
provided by the protocol.
Message level security is implemented with message data itself. Due to this it is independent of the protocol. Some of the common ways of implementing message level security is by encrypting data using some standard encryption algorithm.
Message level security is implemented with message data itself. Due to this it is independent of the protocol. Some of the common ways of implementing message level security is by encrypting data using some standard encryption algorithm.
For
which bindings are transport, message and mixed mode supported?
Below is a table which shows for
which binding which mode is supported. We did not discuss the mixed mode. It’s
nothing but combination of transport and mixed mode. For instance data
encrypted and passed over WsHttp using HTTPS is a mixed mode of security.
Encryption is nothing but message security and HTTPS is a transport mode. In a
combination they form mixed mode.
Binding
|
Transport Mode?
|
Message Mode?
|
Mixed Mode?
|
BasicHttpBinding
|
Yes
|
Yes
|
Yes
|
WsHttpBinding
|
Yes
|
Yes
|
Yes
|
WsDualHttpBinding
|
No
|
Yes
|
No
|
NetTcpBinding
|
Yes
|
Yes
|
Yes
|
NetNamedPipeBinding
|
Yes
|
No
|
No
|
NetMsmqBinding
|
Yes
|
Yes
|
No
|
MsmqIntegrationBinding
|
Yes
|
No
|
No
|
So
what are the scenarios, advantages and disadvantages of transport VS message
security?
Transport
|
Message
|
|
Scenarios when we should be using
one of them
|
When there are no intermediate
systems in between this is the best methodology.
If it’s an intranet type of
solution this is most recommended methodology.
|
When there are intermediate
systems like one more WCF service through which message is routed then
message security is the way to go.
|
Advantages
|
|
|
Disadvantages
|
|
|
Figure: - Route paths
Can
you explain a simple example of how to implement transport security?
Let’s make a simple sample which
will demonstrate how we can use transport security using WsHttp binding with
HTTPS security.
Step
1:- Create a simple service using WCF project
The first step is to create a simple
WCF project. So click on new project and select WCF service project. By default
WCF project creates a default function ‘GetData()’. We will be using the same
function for this sample.
public
class Service1 : IService1
{
public
string GetData(int value)
{
return
string.Format("You entered: {0}", value);
}
public
CompositeType GetDataUsingDataContract(CompositeType composite)
{
if
(composite.BoolValue)
{
composite.StringValue
+= "Suffix";
}
return
composite;
}
}
Step
2 :- Enable transport level security in the web.config file of the service
Next step is to enable transport
security in WsHttp binding. This is done using the ‘Security’ XML tag as shown
in the below code snippet.
<bindings>
<wsHttpBinding>
<binding
name="TransportSecurity">
<security
mode="Transport">
<transport
clientCredentialType="None"/>
</security>
</binding>
</wsHttpBinding>
</bindings>
Step
3:- Tie up the binding and specify HTTPS configuration
We need now tie up the bindings with
the end points. So use the ‘bindingConfiguration’ tag to specify the binding
name. We also need to specify the address where the service is hosted. Please
note the HTTS in the address tag.
Change ‘mexHttpBinding’ to ‘mexHttpsBinding’ in the second end point.
Change ‘mexHttpBinding’ to ‘mexHttpsBinding’ in the second end point.
<service
name="WCFWSHttps.Service1"
behaviorConfiguration="WCFWSHttps.Service1Behavior">
<!--
Service Endpoints -->
<endpoint
address="https://localhost/WCFWSHttps/Service1.svc"
binding="wsHttpBinding"
bindingConfiguration="TransportSecurity"
contract="WCFWSHttps.IService1"/>
<endpoint
address="mex" binding="mexHttpsBinding"
contract="IMetadataExchange"/>
</service>
In
the ‘serviceMetadata’ we also need to change ‘httpGetEnabled’ to
‘httpsGetEnabled’.
<serviceBehaviors>
........
.........
<serviceMetadata
httpsGetEnabled="true"/>
.........
.........
</serviceBehaviors>
Step
4:- Make the web application HTTPS enabled
Now that we are done with the WCF
service project creation and the necessary configuration changes are done. It’s
time to compile the WCF service project and host the same in IIS application
with HTTPS enabled.
We will be using ‘makecert.exe’ which is a free tool given by Microsoft to enable HTTPS for testing purpose. MakeCert (Makecert.exe) is a command-line tool that creates an X.509 certificate that is signed by a system test root key or by another specified key. The certificate binds a certificate name to the public part of the key pair. The certificate is saved to a file, a system certificate store, or both.
You can get the same from “C:\Program Files\Microsoft Visual Studio 8\Common7\Tools\Bin” or you can also get it from windows SDK.
You can type the below thing through your dos prompt on “C:\Program Files\Microsoft Visual Studio 8\Common7\Tools\Bin”. Please note “compaq-jzp37md0” is the server name so you need to replace with your PC name.
We will be using ‘makecert.exe’ which is a free tool given by Microsoft to enable HTTPS for testing purpose. MakeCert (Makecert.exe) is a command-line tool that creates an X.509 certificate that is signed by a system test root key or by another specified key. The certificate binds a certificate name to the public part of the key pair. The certificate is saved to a file, a system certificate store, or both.
You can get the same from “C:\Program Files\Microsoft Visual Studio 8\Common7\Tools\Bin” or you can also get it from windows SDK.
You can type the below thing through your dos prompt on “C:\Program Files\Microsoft Visual Studio 8\Common7\Tools\Bin”. Please note “compaq-jzp37md0” is the server name so you need to replace with your PC name.
makecert -r -pe -n "CN=
compaq-jzp37md0 " -b 01/01/2000 -e 01/01/2050 -eku 1.3.6.1.5.5.7.3.1 -ss
my -sr localMachine -sky exchange -sp "Microsoft RSA SChannel
Cryptographic Provider" -sy 12
If you run the same through your
command prompt you should get a succeeded message as shown below.
Now it’s time to assign this
certificate to your IIS website. So go to IIS properties , click on directory
security tab and you should see server certificate tab.

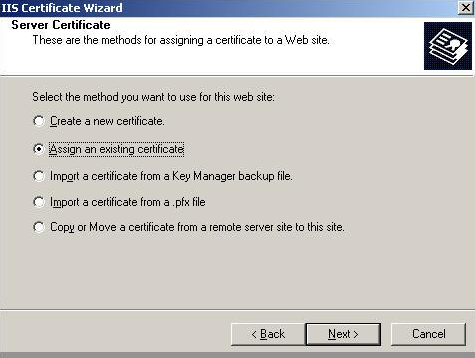

So click on the server certificate tab and you will then be walked through an IIS certificate wizard. Click ‘Assign a existing certificate’ from the wizard.

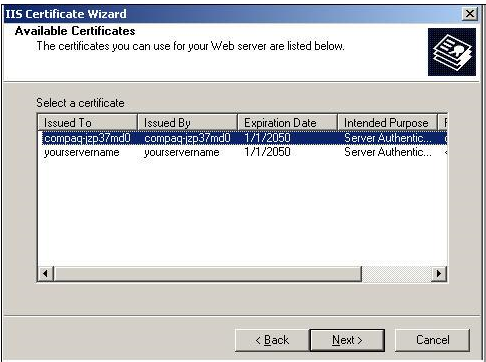

You can see a list of certificates.
The “compaq-jzp37md0” certificate is the one which we just created using
‘makecert.exe’.
Now try to test the site without
‘https’ and you will get an error as shown below….That means your certificate
is working.
Do not forget to enable IIS anonymous access.
Step
5:- Consume the service in a web application
It’s time to consume the service
application in ASP.NET web. So click on add service reference and specify your

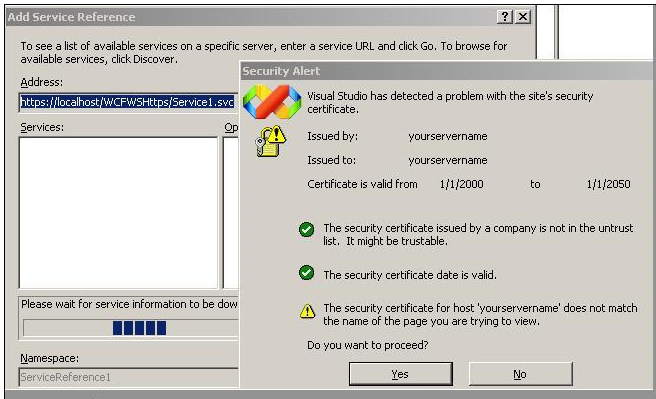

service URL. You will shown a warning box as shown in the below figure. When we
used makecert.exe we did not specify the host name as the service URL. So just
let it go.
Step
6:- Suppress the HTTPS errors
‘makecert.exe’ creates test certificates.
In other words it’s not signed by CA. So we need to suppress those errors in
our ASP.NET client consumer. So we have created a function called as
‘IgnoreCertificateErrorHandler’ which return true even if there are errors.
This function is attached as a callback to
‘ServicePointManager.ServerCertificateValidationCallback’.
In the same code you can also see service consuming code which calls the ‘GetData’ function.
In the same code you can also see service consuming code which calls the ‘GetData’ function.
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Web;
using
System.Web.UI;
using
System.Web.UI.WebControls;
using
WebApplicationConsumer.ServiceReference1;
using
System.Net;
using
System.Net.Security;
using
System.Security.Cryptography.X509Certificates;
namespace
WebApplicationConsumer
{
public
partial class _Default : System.Web.UI.Page
{
protected
void Page_Load(object sender, EventArgs e)
{
ServicePointManager.ServerCertificateValidationCallback
= new RemoteCertificateValidationCallback(IgnoreCertificateErrorHandler);
Service1Client
obj = new Service1Client();
Response.Write(obj.GetData(12));
}
public
static bool IgnoreCertificateErrorHandler(object sender, X509Certificate
certificate, X509Chain chain, SslPolicyErrors sslPolicyErrors)
{
return
true;
}
}
}
Step
7:- Enjoy success
Now to the easiest step, compile you
ASP.NET client and enjoy success.
Can
you show a simple example of message level security ?
Let’s do a simple example of message
security using Wshttp with X509 certificates.
Step
1:- Create client and server certificates
Create two certificates one for the
server and the other for the client using makecert.exe. You can get
makecert.exe from “C:\Program Files\Microsoft Visual Studio
8\Common7\Tools\Bin” folder. So you can goto dos prompt and run the below
command snippet.
makecert.exe -sr CurrentUser -ss My
-a sha1 -n CN=WCfServer -sky exchange -pe
makecert.exe -sr CurrentUser -ss My -a sha1 -n CN=WcfClient -sky exchange -pe
makecert.exe -sr CurrentUser -ss My -a sha1 -n CN=WcfClient -sky exchange -pe
Below is a detailed explanation of
various attributes specified in the ‘makecert.exe’.
Attribute
|
Explanation
|
-sr
|
Specifies the registry location of
the certificate store. The SubjectCertStoreLocation argument must be either
of the following:
currentUser Specifies the registry location HKEY_CURRENT_USER. localMachine Specifies the registry location HKEY_LOCAL_MACHINE. |
-ss
|
Specifies the name of the
certificate store where the generated certificate is saved.
|
-a
|
Specifies the algorithm. Can be
either MD5 or SHA1.
|
-n
|
Specifies a name for the
certificate. This name must conform to the X.500 standard. The simplest
method is to use the "CN=MyName" format.If the /n switch is not
specified; the default name of the certificate is "Joe's Software
Emporium".
|
-sky
|
Specifies how will be the key
type. Can be either exchange or signature.
|
-pe
|
This makes the key exportable.
|
Note: - Makecert.exe is a free tool provided by Microsoft which helps to create X.509 certificate that is signed by a system test root key or by another specified key. This is a test certificate and not a real one and should not be used for production purpose. For production buy proper certificates from Thawte, Verisign, GeoTrust etc.
Currently we have specified that we
want to create the client key with ‘WcfClient’ name and server key with
‘WCFServer’. The certificates should be created for the current user and should
be exportable.
Once you run the command you should see the ‘Succeeded’ message as shown in the below figure. Below figure shows keys created for both server and client.
Once you run the command you should see the ‘Succeeded’ message as shown in the below figure. Below figure shows keys created for both server and client.
Step
2 :- Copy the certificates in trusted people certificates
Go to start à run and type MMC and
press enter. You will be popped with the MMC console. Click on file Ã
Add/remove snap-in.
You will be popped up with a
Add/Remove Snap-in , click on the add button , select certificates and select
‘My user Account’.
You can see the certificates created for client and server in the personal certificates folder. We need to copy those certificates in trusted people à certificates folder.
You can see the certificates created for client and server in the personal certificates folder. We need to copy those certificates in trusted people à certificates folder.
Step
3 :- Specify the certification path and mode in the WCF service web.config file
Now that we have created both the
certificates we need to refer these certificates in our WCF project.
So we have created two projects one which has the WCF service and the other project is a web application which will consume the WCF service.
So we have created two projects one which has the WCF service and the other project is a web application which will consume the WCF service.
Let’s open the web.config file of
the WCF service and enter two important things:-
• Where the certificate is stored, location and how WCF application should find the same. This is defined using ‘serviceCertificate’ tag as shown in the below snippet.
• The ‘certificationvalidationmode’ defines how client certificates will be authenticated.
• Where the certificate is stored, location and how WCF application should find the same. This is defined using ‘serviceCertificate’ tag as shown in the below snippet.
• The ‘certificationvalidationmode’ defines how client certificates will be authenticated.
Certification validation mode
|
Description
|
Chain trust
|
In this situation the client
certificate is validated against the root certificate.
|
Peer trust
|
PeerTrust ensures that the public
key portion of the certificate is in the Trusted People certificate folder on
the clients computer
|
ChainORPeertrust
|
This is just a OR condition for
both chain and peer.
|
The above two points is clubbed
together and entered in the web.config file of the WCF service.
<serviceCredentials>
<clientCertificate>
<authentication
certificateValidationMode="PeerTrust"/>
</clientCertificate>
<serviceCertificate
findValue="WCfServer"
storeLocation="CurrentUser"
storeName="My"
x509FindType="FindBySubjectName"
/>
</serviceCredentials>
Step
4 :- Define bindings
Now that we have defined our
certificates and authentication type we need to define that the authentication
values will be sent through message using certificates. You can see we have
defined the ‘WsHttpBinding’ with message attribute specifying that the WCF
client needs to send a certificate for validation.
<bindings>
<wsHttpBinding>
<binding
name="wsHttpEndpointBinding">
<security>
<message
clientCredentialType="Certificate" />
</security>
</binding>
</wsHttpBinding>
</bindings>
Step5
:- Tie up the bindings with end point
Once done we need to tie up this
binding with the end point. This is done by using ‘bindingConfiguration’ tag as
shown in the below code snippet.
<endpoint
address="" binding="wsHttpBinding" "BACKGROUND-COLOR:
#ffff00">bindingConfiguration"BACKGROUND-COLOR:
#ffff00">="wsHttpEndpointBinding"
contract="WCFServiceCertificate.IService1">
Step
6 :- Make your web application client for consuming the WCF service
That’s all we need to from the WCF
service perspective. So compile the WCF service and reference the same in the
ASP.NET web application using ‘Service reference’. Below is the code snippet
where we have referenced the service and called the ‘GetData’ function of the
service/
Collapse
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Web;
using
System.Web.UI;
using
System.Web.UI.WebControls;
"BACKGROUND-COLOR:
#ffff00">using WebConsumer.ServiceReference1;
namespace
WebConsumer
{
public
partial class _Default : System.Web.UI.Page
{
protected
void Page_Load(object sender, EventArgs e)
{
"BACKGROUND-COLOR:
#ffff00">Service1Client obj = new Service1Client();
"BACKGROUND-COLOR:
#ffff00">Response.Write(obj.GetData(12));
}
}
}
Now if you try to run the client
i.e. the web application as it is you should get an error as shown below. The
error clearly indicates you can use the WCF service until you do not provide
the client certificate.
Step
7 :- Define certificates in WCF client
So let’s start the process of
defining certificates in the WCF client. The way we have defined authentication
certification mode and the path of the certificate, in the same way we need to
define it for WCF client. You can see we have defined the authentication mode
as ‘peertrust’ and we have specified the client certificate name as
‘WcfClient’.
<behaviors>
<endpointBehaviors>
<behavior
name="CustomBehavior">
<clientCredentials>
<clientCertificate
findValue="WcfClient" x509FindType="FindBySubjectName"
storeLocation="CurrentUser" storeName="My" />
<serviceCertificate>
<authentication
certificateValidationMode="PeerTrust"/>
</serviceCertificate>
</clientCredentials>
</behavior>
</endpointBehaviors>
</behaviors>
Step
8 :- Tie up the behavior with end point on WCF client
We need to tie up the above defined
behavior with the end point. You can see we have bounded the behavior using
‘behaviorConfiguration’ property. We also need to specify that the DNS value
will be ‘WcfServer’ which your server certificate name.
<client>
<endpoint
address="http://localhost:1387/Service1.svc"
binding="wsHttpBinding"
bindingConfiguration="WSHttpBinding_IService1"
contract="ServiceReference1.IService1"
name="WSHttpBinding_IService1"
"BACKGROUND-COLOR:
#ffff00">behaviorConfiguration="CustomBehavior">
<identity>
"BACKGROUND-COLOR:
#ffff00"><dns value="WcfServer" />
</identity>
</endpoint>
</client>
Step
9 :- Enjoy your hard work
Once we are done you can run the
ASP.NET web and you should see the below display.
What
is the difference between BasicHttpBinding and WsHttpBinding ?
If we want to summarize in one
sentence the difference between ‘WsHttpBinding’ and ‘BasicHttpBinding’ is tha
‘WsHttpBinding’ supports ‘WS-*’ specification. WS-* specifications are nothing
but standards to extend web service capabilities.
Below is a detailed comparison table between both the entities from security, compatibility, reliability and SOAP version perspective.
Below is a detailed comparison table between both the entities from security, compatibility, reliability and SOAP version perspective.
Criteria
|
BasicHttpBinding
|
WsHttpBinding
|
Security support
|
This supports the old ASMX style
i.e WS-BasicProfile 1.1.
|
This exposes web services using
WS-* specifications.
|
Compatibility
|
This is aimed for clients who do
not have .Net 3.0 installed and it supports wider ranges of client. Many of
clients like Windows 2000 still do not run .NET 3.0. So older version of .NET
can consume this service.
|
As its built using WS-*
specifications it does not support wider ranges of client and it cannot be
consumed by older .NET version less than 3 version.
|
Soap version
|
SOAP 1.1
|
SOAP 1.2 and WS-Addressing
specification.
|
Reliable messaging
|
Not supported. In other words if a
client fires two or three calls you really do not know they will return back
in the same order.
|
Supported as it supports WS-*
specifications.
|
Default security options
|
By default there is not security
provided for messages when the client calls happen. In other words data is
sent as plain text.
|
As WsHttBinding supports WS-* it
has WS-Security enabled by default. So the data is not sent in plain text.
|
Security options
|
|
|
One of the biggest differences you
must have noticed is the security aspect. By default ‘BasicHttpBinding’ sends
data in plain text while ‘WsHttpBinding’ sends in encrypted and secured manner.
To demonstrate the same let’s make two services one using ‘BasicHttpBinding’
and the other using ‘WsHttpBinding’ and then let’s see the security aspect in a
more detailed manner.
We will do a small sample to see how ‘BasicHttpBinding’ sends data in plain text format and how ‘WsHttpBinding’ encrypts data.
We will do a small sample to see how ‘BasicHttpBinding’ sends data in plain text format and how ‘WsHttpBinding’ encrypts data.
Note :- By Default security is not
enabled on ‘BasicHttpBinding’ for interoperability purpose. In other words it
like our old webservice i.e. ASMX. But that does not mean we cannot enable
security in ‘BasicHttpBinding’. Sometimes back we had a written a article on
how to enable security on ‘BasicHttpBinding’ WCFBasicHttpBinding.aspx
Can
you show the security differences between BasicHttpBinding VS WsHttpBinding ?
In order to understand the security
differences between both these entities we will do a small project. In this
project we will create two WCF service one service using ‘BasicHttpBinding’ and
the second service using ‘WsHttpBinding’.
Step1:- So let’s first create a simple service using
‘BasicHttpBinding’. For that we just a create a simple WCF project and then
modify the ‘ServiceModel’ element as shown below. You can see in the ‘endpoint’
tag we have specified ‘basicHttpBinding’ as the protocol.
<system.serviceModel>
<services>
<service
name="WCFBasicHttpBinding.Service1"
behaviorConfiguration="WCFBasicHttpBinding.Service1Behavior">
<!--
Service Endpoints -->
<endpoint
address="" binding="basicHttpBinding"
contract="WCFBasicHttpBinding.IService1">
<!--
Upon
deployment, the following identity element should be removed or replaced to
reflect the
identity
under which the deployed service runs. If removed, WCF will infer an
appropriate identity
automatically.
-->
<identity>
<dns
value="localhost"/>
</identity>
</endpoint>
<endpoint
address="mex" binding="mexHttpBinding"
contract="IMetadataExchange"/>
</service>
</services>
<behaviors>
<serviceBehaviors>
<behavior
name="WCFBasicHttpBinding.Service1Behavior">
<!--
To avoid disclosing metadata information, set the value below to false and
remove the metadata endpoint above before deployment -->
<serviceMetadata
httpGetEnabled="true"/>
<!--
To receive exception details in faults for debugging purposes, set the value
below to true. Set to false before deployment to avoid disclosing exception
information -->
<serviceDebug
includeExceptionDetailInFaults="false"/>
</behavior>
</serviceBehaviors>
</behaviors>
</system.serviceModel>
Step 2 :- We also need to create one more service using
‘WsHttpBinding’. For that you do not need to anything special as such. By
default WCF project is created using ‘WsHttpBinding’. Below is how the
Web.config file looks like. You can see how the endpoint tag is using
‘wsHttpBinding’.
<system.serviceModel>
<services>
<service
name="WCFWsHttpBindingHttps.Service1"
behaviorConfiguration="WCFWsHttpBindingHttps.Service1Behavior">
<!--
Service Endpoints -->
<endpoint
address="" binding="wsHttpBinding"
contract="WCFWsHttpBindingHttps.IService1">
<!--
Upon
deployment, the following identity element should be removed or replaced to
reflect the
identity
under which the deployed service runs. If removed, WCF will infer an
appropriate identity
automatically.
-->
<identity>
<dns
value="localhost"/>
</identity>
</endpoint>
<endpoint
address="mex" binding="mexHttpBinding"
contract="IMetadataExchange"/>
</service>
</services>
<behaviors>
<serviceBehaviors>
<behavior
name="WCFWsHttpBindingHttps.Service1Behavior">
<!--
To avoid disclosing metadata information, set the value below to false and
remove the metadata endpoint above before deployment -->
<serviceMetadata
httpGetEnabled="true"/>
<!--
To receive exception details in faults for debugging purposes, set the value
below to true. Set to false before deployment to avoid disclosing exception
information -->
<serviceDebug
includeExceptionDetailInFaults="false"/>
</behavior>
</serviceBehaviors>
</behaviors>
</system.serviceModel>
Step 3 :- We will not be creating any new methods in both the
services. We will just use the default code created by the WCF template. So
both these services will have a ‘GetData’ function which returns a string. The
‘GetData’ function is a default function created WCF project.
Collapse
public
class Service1 : IService1
{
public
string GetData(int value)
{
return
string.Format("You entered: {0}", value);
}
public
CompositeType GetDataUsingDataContract(CompositeType composite)
{
if
(composite.BoolValue)
{
composite.StringValue
+= "Suffix";
}
return
composite;
}
}
Step 4 :- Now that out services are created we need to create a client
which will consume this service. So we have created a simple web application
and we have added two references one is a service reference i.e.
‘WsHttpBinding’ and the second is a web reference i.e. ‘BasicHttpBinding’.
Please note when you right click to add reference you need to use the ‘Add
service reference’ to add ‘WsHttpService’ and you need to add web reference for
‘BasicHttpBinding’.
We will add two buttons on the
default aspx page. One button will call the http service and the other will
call the wshttp service. Below is how the function ‘GetData’ is called in both
the button clicks.
Step 5 :- So now we are ready with
the complete project it is time to sniff and see how data is transported
between client and the service in both the scenarios. So let’s download a
simple http data recorder from http://www.ieinspector.com/httpanalyzer/download.html . We will then click both the buttons one by one and
record the data transfer using httpanalyzer. You can see the posted data is in
simple plain XML format for basic http protocol and it’s in an encrypted format
for wshttp protocol.
When
should we use WsHttp as compared to BasicHttp ?
If you are looking for back ward
compatibility and to support lot of clients then basic http binding is the way
to go or else WsHttp is the great way to start if you are seeing your clients
made in .NET 3.0 and above.
How
can we enable windows authentication on WCF using ‘BasicHttpBinding’?
Step 1:- Create a project of WCF service application as shown in the
below figure.
Circle WCF service application à Select this
By default the WCF project creates a
class file which has ‘GetData’ function. This function takes in a number values
and displays a explanatory sentence like ‘You entered 1 value’ , in case you
have entered ‘1’.
public
class Service1 : IService1
{
public
string GetData(int value)
{
return
string.Format("You entered: {0}", value);
}
}
Step 2:- When we create a WCF service application it also has a
web.config file associated with it. So open the web.config file and ensure that
authentication mode is windows.
<authentication
mode="Windows" />
Step 3:- The third step is to define the bindings and the transport type.
To define the bindings we need to enter ‘basicHttpBinding’ element inside the
‘bindings’ XML tag. We also need to define the ‘clientCredentialType’ as
windows.
<system.serviceModel>
<bindings>
<basicHttpBinding>
<binding
name="BasicHttpEndpointBinding">
<security
mode="TransportCredentialOnly">
<transport
clientCredentialType="Windows" />
</security>
</binding>
</basicHttpBinding>
</bindings>
<services>
.........
.........
</system.serviceModel>
Step 4:- Now the bindings defined needs to be associated with
service interface i.e. ‘service1’. So we need to modify the services elements
as shown below. You can note that we have defined a end point which has the
binding association.
Collapse
<system.serviceModel>
........
........
........
<services>
<service
behaviorConfiguration="WCFWindowsBasicHttpBinding.Service1Behavior"
name="WCFWindowsBasicHttpBinding.Service1">
<endpoint
address="" binding="basicHttpBinding"
bindingConfiguration="BasicHttpEndpointBinding"
name="BasicHttpEndpoint"
contract="WCFWindowsBasicHttpBinding.IService1">
<identity>
<dns
value="localhost" />
</identity>
</endpoint>
</service>
</services>
.........
.........
.........
.........
</system.serviceModel>
So over all your <system.serviceModel>
XML part as whole with bindings and services is a shown below.
<system.serviceModel>
<bindings>
<basicHttpBinding>
<binding
name="BasicHttpEndpointBinding">
<security
mode="TransportCredentialOnly">
<transport
clientCredentialType="Windows" />
</security>
</binding>
</basicHttpBinding>
</bindings>
<services>
<service
behaviorConfiguration="WCFWindowsBasicHttpBinding.Service1Behavior"
name="WCFWindowsBasicHttpBinding.Service1">
<endpoint
address="" binding="basicHttpBinding"
bindingConfiguration="BasicHttpEndpointBinding"
name="BasicHttpEndpoint"
contract="WCFWindowsBasicHttpBinding.IService1">
<identity>
<dns
value="localhost" />
</identity>
</endpoint>
</service>
</services>
<behaviors>
<serviceBehaviors>
<behavior
name="WCFWindowsBasicHttpBinding.Service1Behavior">
<!--
To avoid disclosing metadata information, set the value below to false and
remove the metadata endpoint above before deployment -->
<serviceMetadata
httpGetEnabled="true"/>
<!--
To receive exception details in faults for debugging purposes, set the value
below to true. Set to false before deployment to avoid disclosing exception
information -->
<serviceDebug
includeExceptionDetailInFaults="false"/>
</behavior>
</serviceBehaviors>
</behaviors>
</system.serviceModel>
Step 5 :- Go to IIS properties and click on security tab and ensure
that anonymous access is disabled and only windows authentication is enabled.
Step 6:- We need to host our service in the IIS. So make the
directory as an IIS application so that your service can be hosted. Now if you
try to browse the service i.e. the SVC file you will see that it pops up the
authentication authorization security dialog box. So this service cannot be
executed with windows authentication.
Step 7:- So let’s consume this WCF services. So add an ASP.NET
webapplication and do a add webreference. You will be popped up with a dialog
box as shown below. Click on add reference so that a proxy is generated for the
WCF service.
Step 8:- Type in the following code snippet in your page load. So
add the namespace reference and call the method ‘GetData’. The most important
step to note is the credential supplied. ‘DefaultCredentials’ passes the
current windows identity to the WCF service.
If you execute the service you
should get the following display as shown below.
You can try commenting the below
code in your client in other words we are not passing any credentials.
Collapse
obj.Credentials
= System.Net.CredentialCache.DefaultCredentials;
Now if you execute you should get
the below error stating that this is a unauthorized call.
Thanks for visiting this blog. How is the content?. Your comment is great gift to my work. Cheers.
very informative, thanks for the post.
ReplyDeleteThank you
DeleteKindly post information on SQL Server Certification
ReplyDeleteI will try , thankyou
ReplyDeleteBefore you hire angular js developers in India, you must check the four key factors in them, namely: Their skillset, their mindset, their patience, and their values. These four important factors will determine the quality of work they will bring to the table. If you want to hire angular js developers in India, you can visit Eiliana.com, which houses top-rated freelance development and testing professionals.
ReplyDeleteHey, I enjoyed this blog, where you talk about the growth of freelancers in the backend development field. One of the great freelancing platforms for eCommerce developers is Eiliana.com. Take a look at the freelancing platform too. It is a new yet great platform for technical experts.
ReplyDelete
